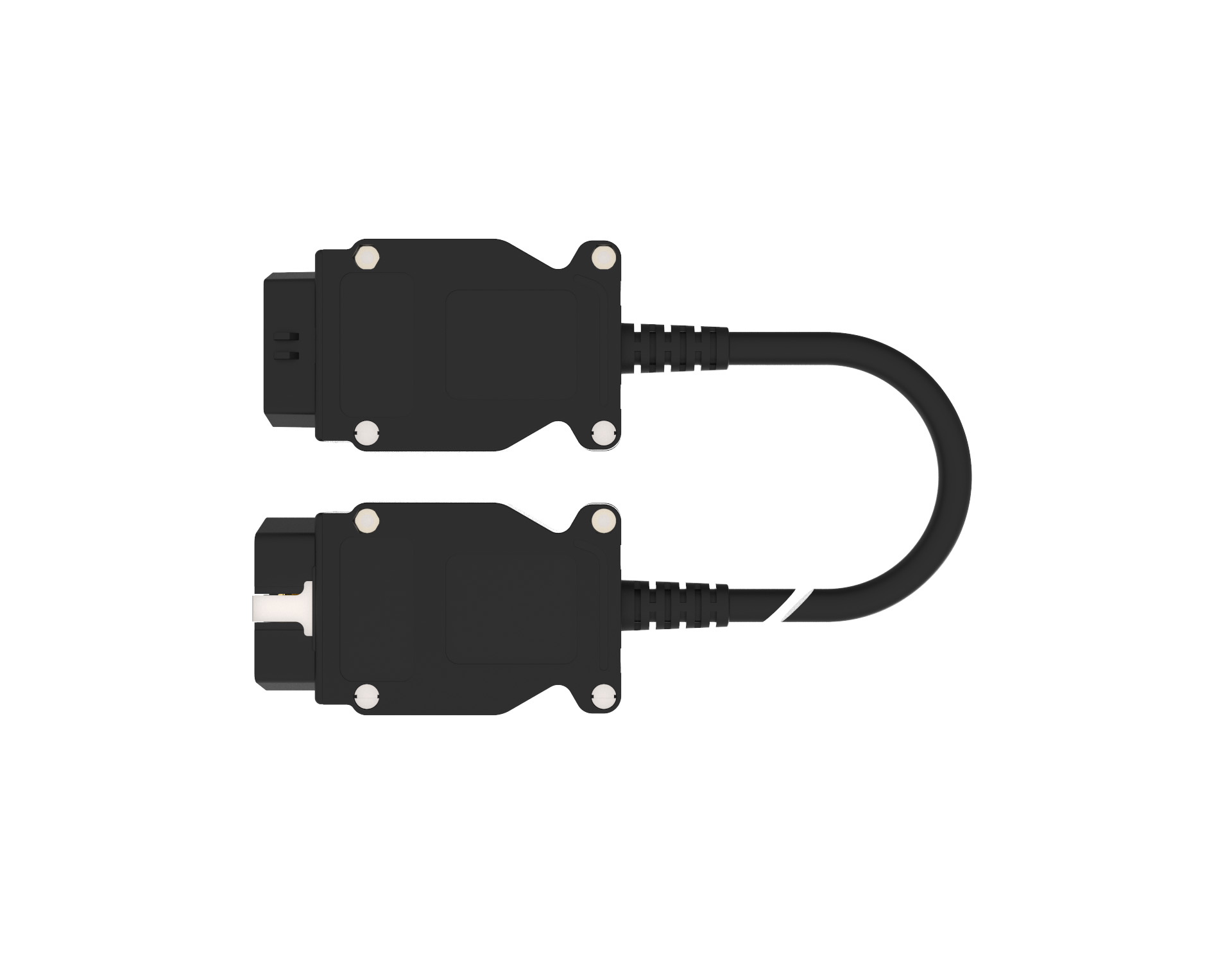

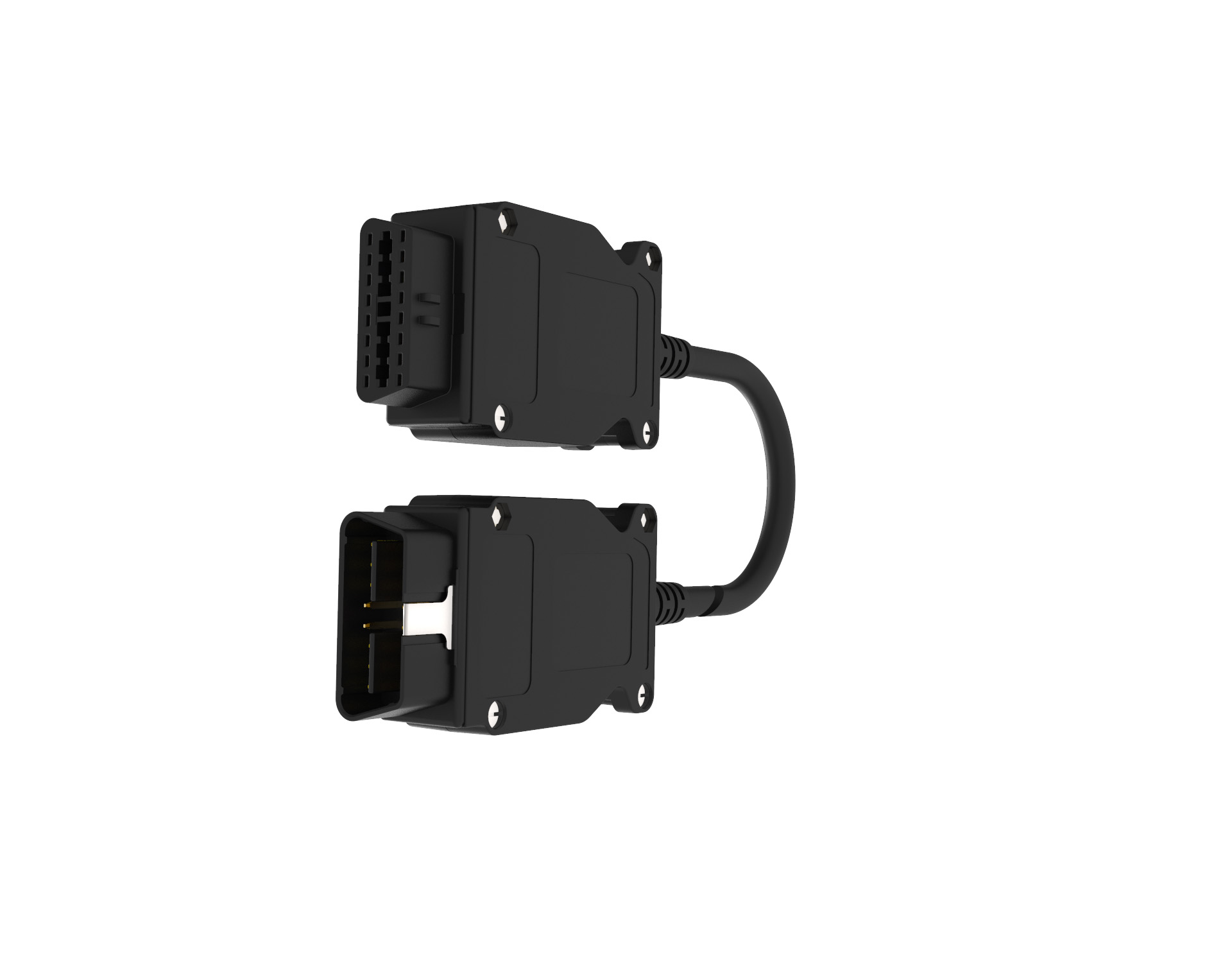

OBD adapter lead
AL 8305/ OBD II/ 24 V
No items found.
No items found.
No items found.
Compile order information
Your match code
AL 8305/ OBD II/ 24 V
…
/
…
Thank you! Your submission has been received!
Oops! Something went wrong while submitting the form.
Product Description
- 1 site: OBD II socket OBDBU 7640 Au / 24V / SW with housing made of PA6 reinforced with glass fibres, 24 V, with solder pins and solder terminal for wire strand up to Ø 1.3 mm
- 2 side: OBD II connector OBDST 7388 AURO / 24V / SW with housing made of PA6 reinforced with glass fibres, 24 V, with solder pins, rectangle pins 1.6x0.82 and with solder terminal for wire strand up to Ø 1.3 mm, assembled on shielded control cable 16x0.22 mm²
- cable control cable PVC 16x0.22 mm²
General information
Colour
black
,
Längen
50 cm
Contact parts
Au
(
gold-plated
)
/
Sleeves
Isolierteile
Inhalt
Lagerung
Steckabstand
Technical Data
Terminal
Leitung
control cable PVC 16x0.22 mm²
Mounting hole
Handle sleeve for cable
For cable cross-section
For cable diameter
Transition resistance
0 mΩ (Au)
Rated voltage
No items found.
Rated current
Thread
Operating temperature
-10 °C to +80 °C
Max. torque
fastening nut
fastening nut
Tightening torque
of the nut M4
of the nut M4
Flachsteckzunge
Einsteckfenster
Druckfederkraft
RG-Typ nach MIL-C-17
Wellenwiderstand
Seiten
Further information
Matchcode: other contact platings and colours on request
Rated voltage & rated current: At normal ambient temperatures.
