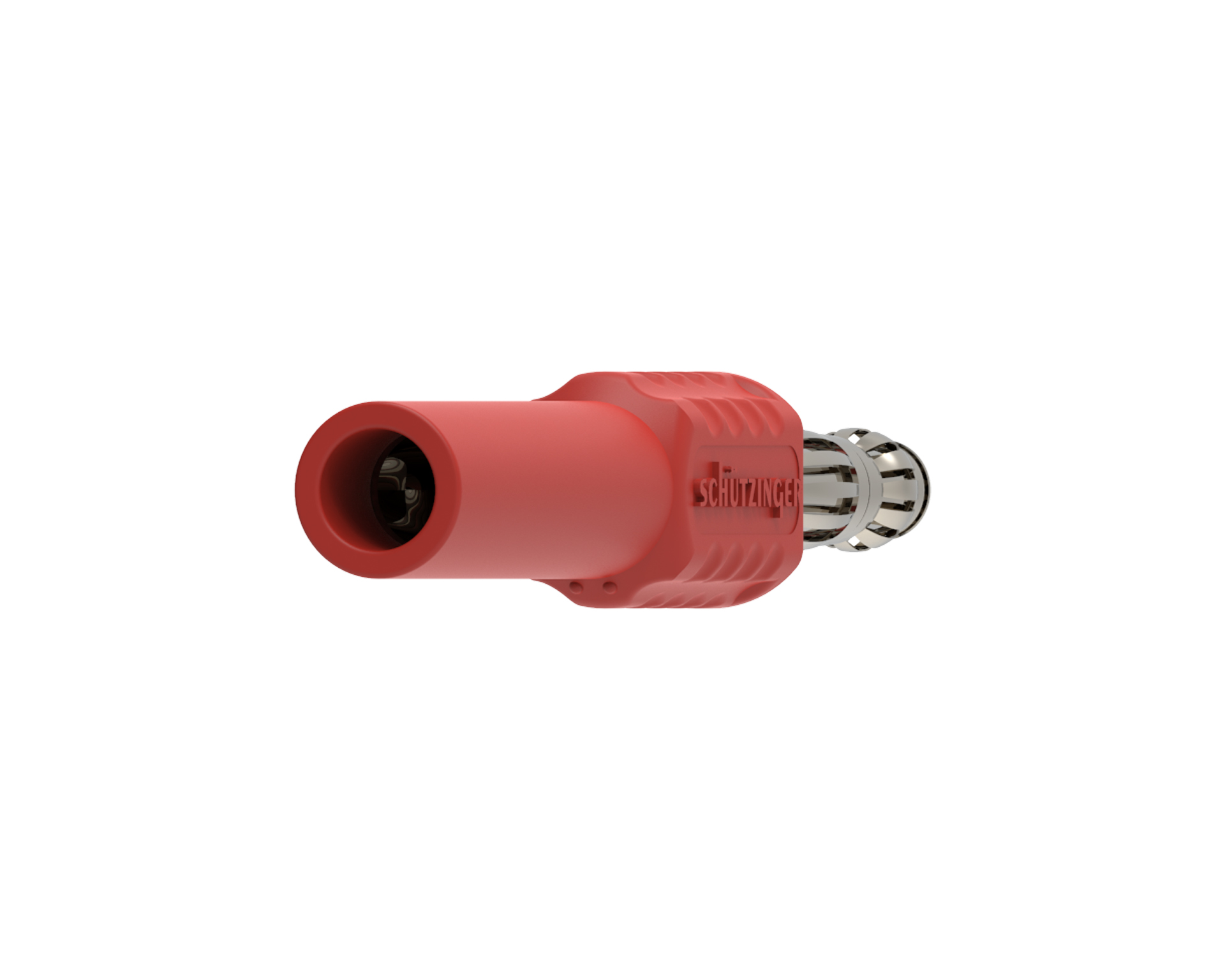

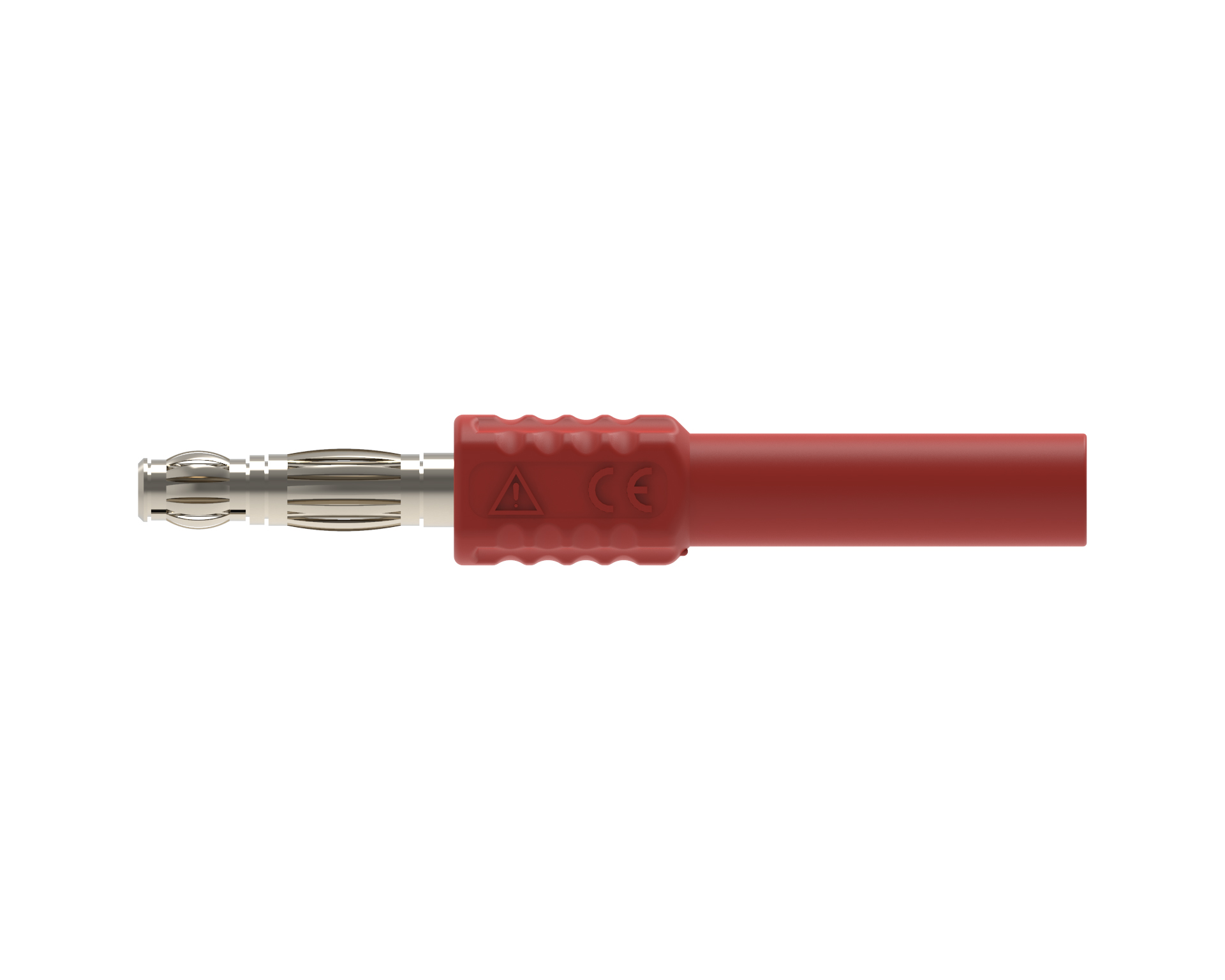

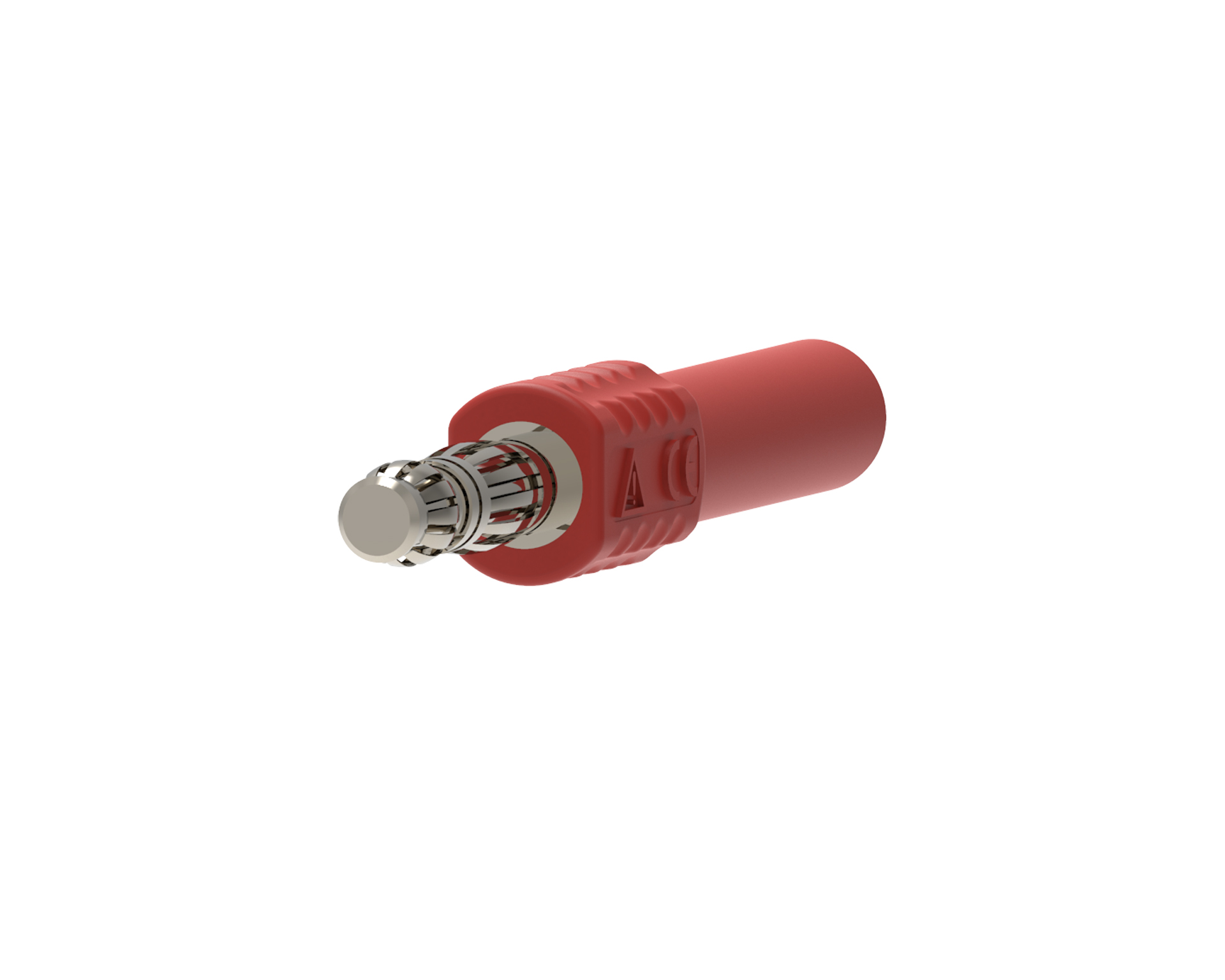

Connecting plug
BRST 7922
Ø
4 mm
No items found.
Compile order information
Your match code
BRST 7922
…
/
…
Thank you! Your submission has been received!
Oops! Something went wrong while submitting the form.
Product Description
- for connecting both poles of our connecting sockets with a socket Ø 4 mm
- for our connecting socket BRBU 7924 L .. / ..(colour)
General information
Colour
black
,
red
,
Längen
Contact parts
Ni
(
nickel-plated
)
/
Sleeves
Isolierteile
PA 6.6 (UL94-V2)
Inhalt
Lagerung
Steckabstand
Technical Data
Terminal
inline socket
Leitung
Mounting hole
Handle sleeve for cable
For cable cross-section
For cable diameter
Transition resistance
6 mΩ
Rated voltage
30 VAC / 60 VDC
,
Rated current
16 A
Thread
Operating temperature
-25 °C to +80 °C
Max. torque
fastening nut
fastening nut
Tightening torque
of the nut M4
of the nut M4
Flachsteckzunge
Einsteckfenster
Druckfederkraft
RG-Typ nach MIL-C-17
Wellenwiderstand
Seiten
Further information
Matchcode: Other contact platings, colours and terminals on request.
Rated voltage & rated current: At normal ambient temperatures.
