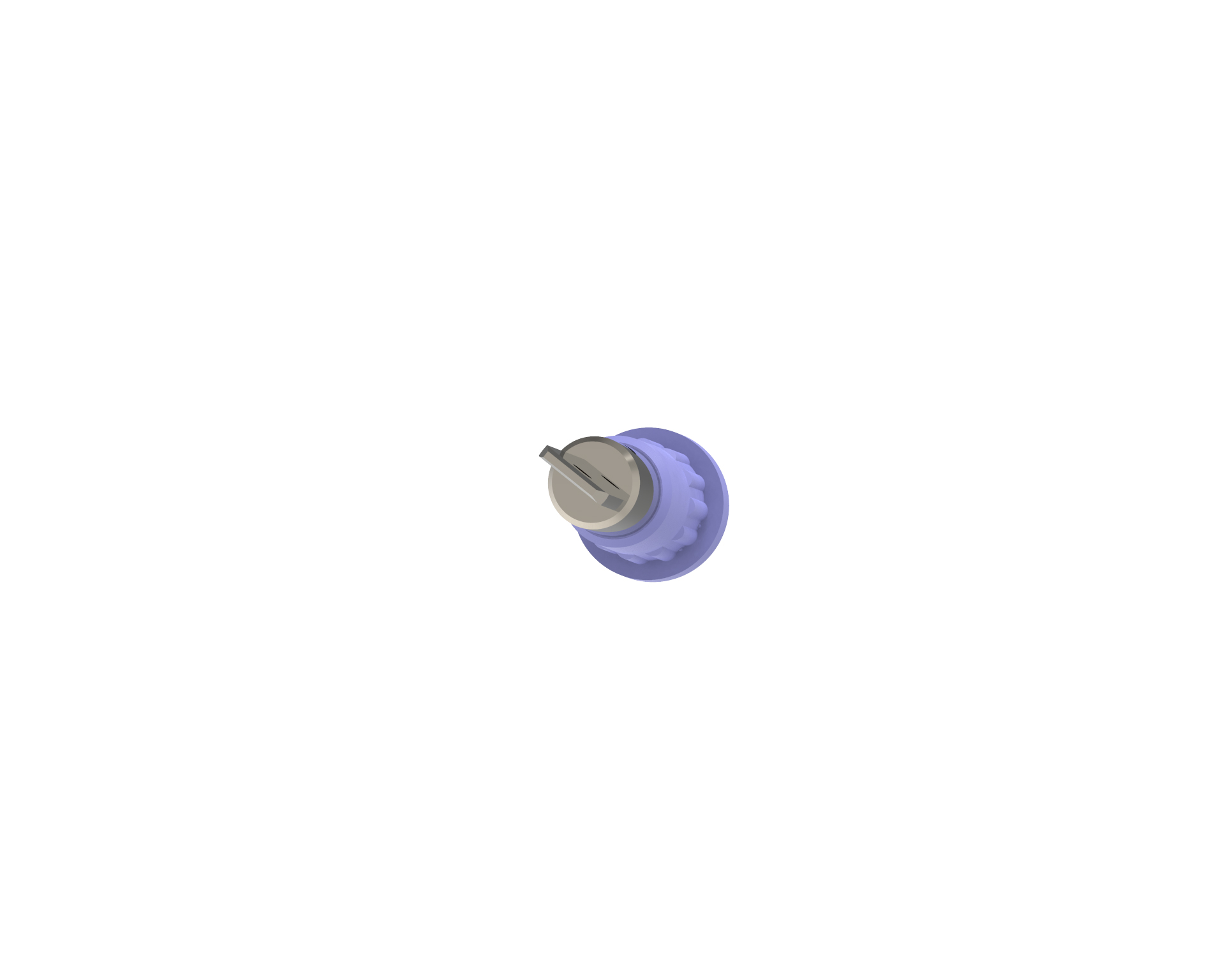

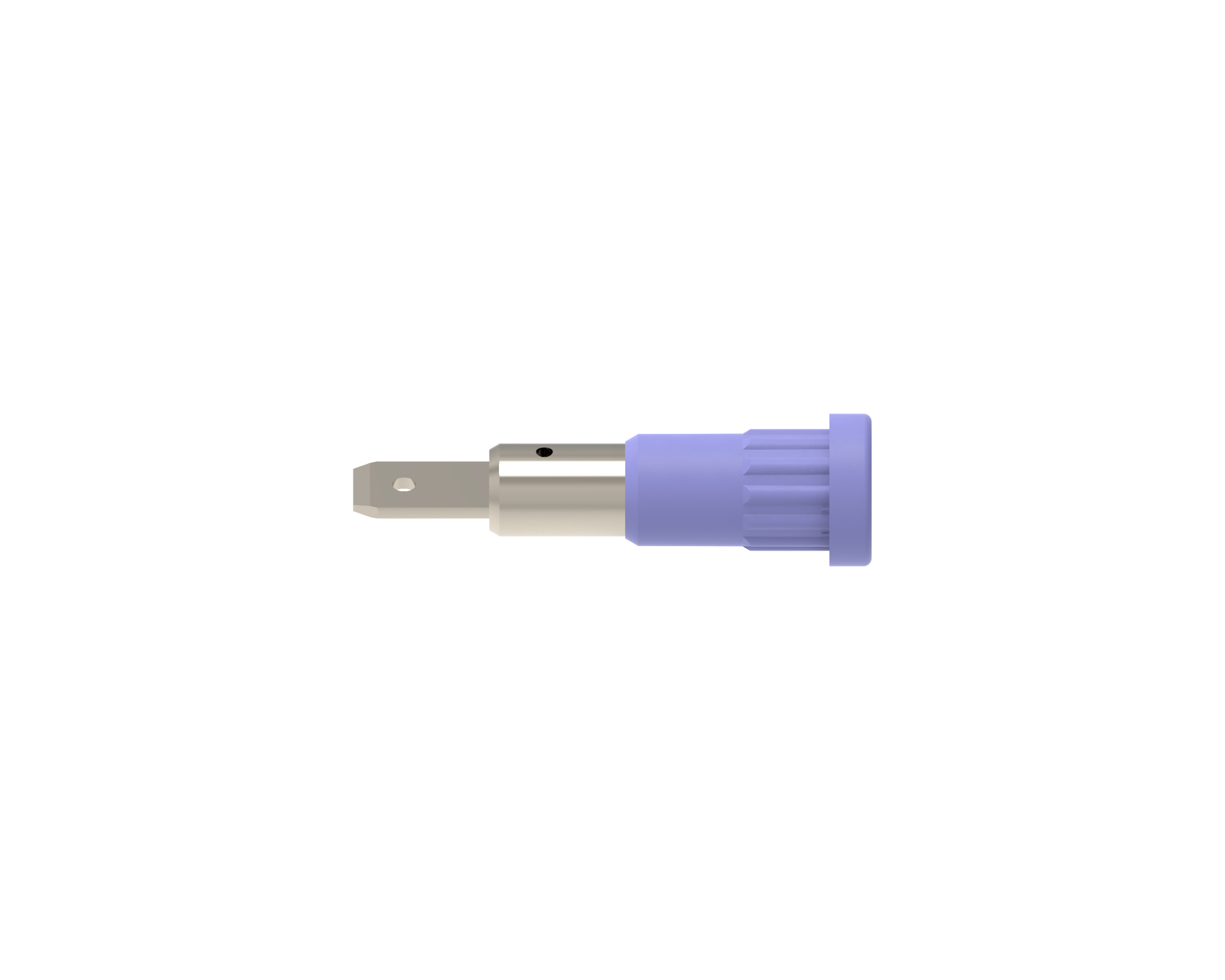

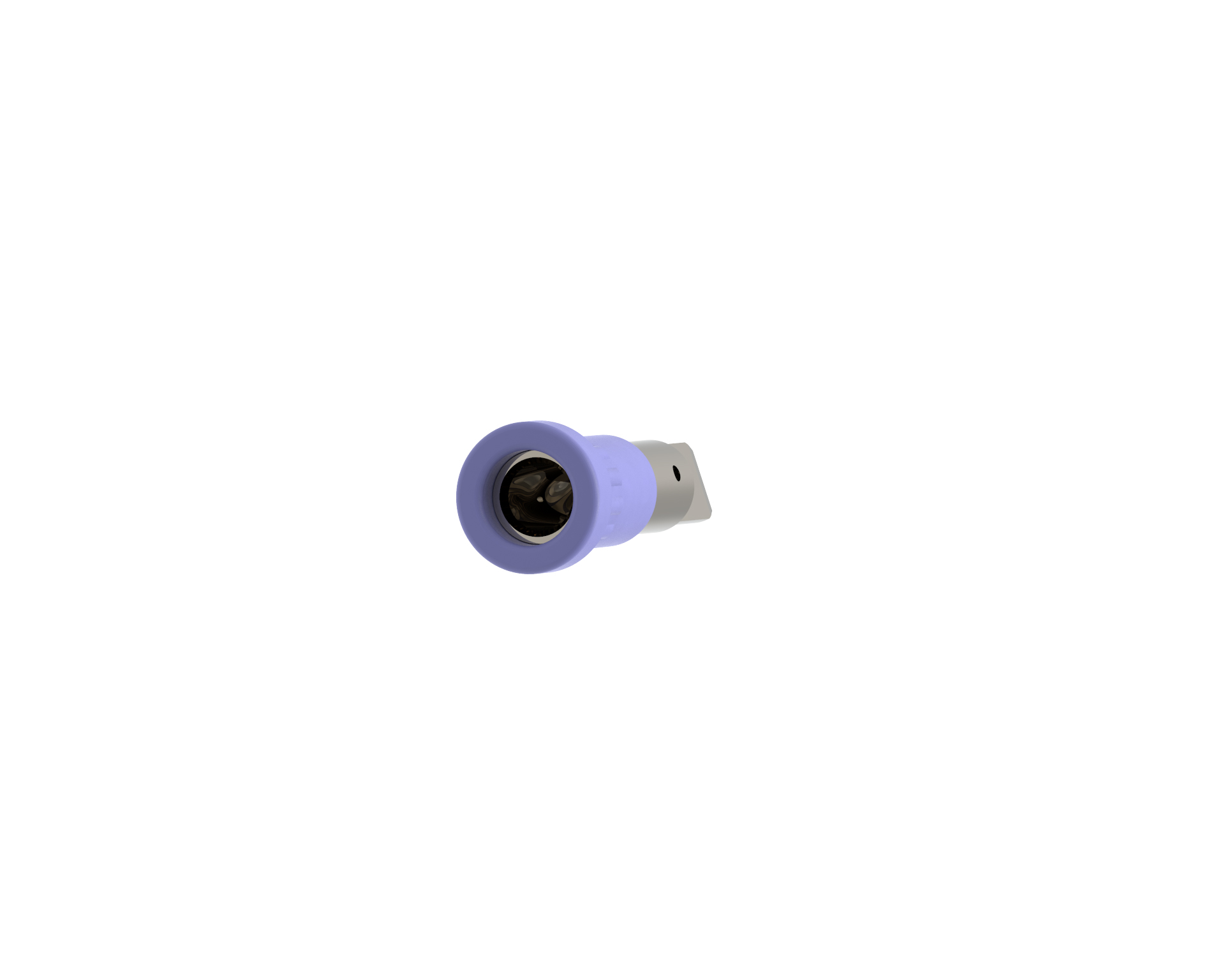

Press-in socket
EPB 6792
Ø
4 mm
No items found.
Compile order information
Your match code
EPB 6792
…
/
…
Thank you! Your submission has been received!
Oops! Something went wrong while submitting the form.
Product Description
- for pressing into panels up to 6 mm thick
- hole Ø 6.8
- fixture using press-in tool WKZ EPB4
- tab 4.8 mm x 0.8 mm
General information
Colour
black
,
red
,
blue
,
yellow
,
green
,
grey
,
brown
,
white
,
violet
,
Längen
Contact parts
Ni
(
nickel-plated
)
/
Sleeves
Isolierteile
PA 6.6 (Polyamid) UL94 - V2
Inhalt
Lagerung
Steckabstand
Technical Data
Terminal
FSH 4,8 mm x 0,8 mm
Leitung
Mounting hole
Ø 6,8 mm
Handle sleeve for cable
For cable cross-section
For cable diameter
Transition resistance
4 mΩ (Ni)
Rated voltage
30 VAC / 60 VDC
,
Rated current
24 A
Thread
Operating temperature
-40 °C to +100 °C
Max. torque
fastening nut
fastening nut
Tightening torque
of the nut M4
of the nut M4
Flachsteckzunge
Einsteckfenster
Druckfederkraft
RG-Typ nach MIL-C-17
Wellenwiderstand
Seiten
Further information
Matchcode: Other contact platings, colours and designs on request.
Rated voltage & rated current: At normal ambient temperatures.
