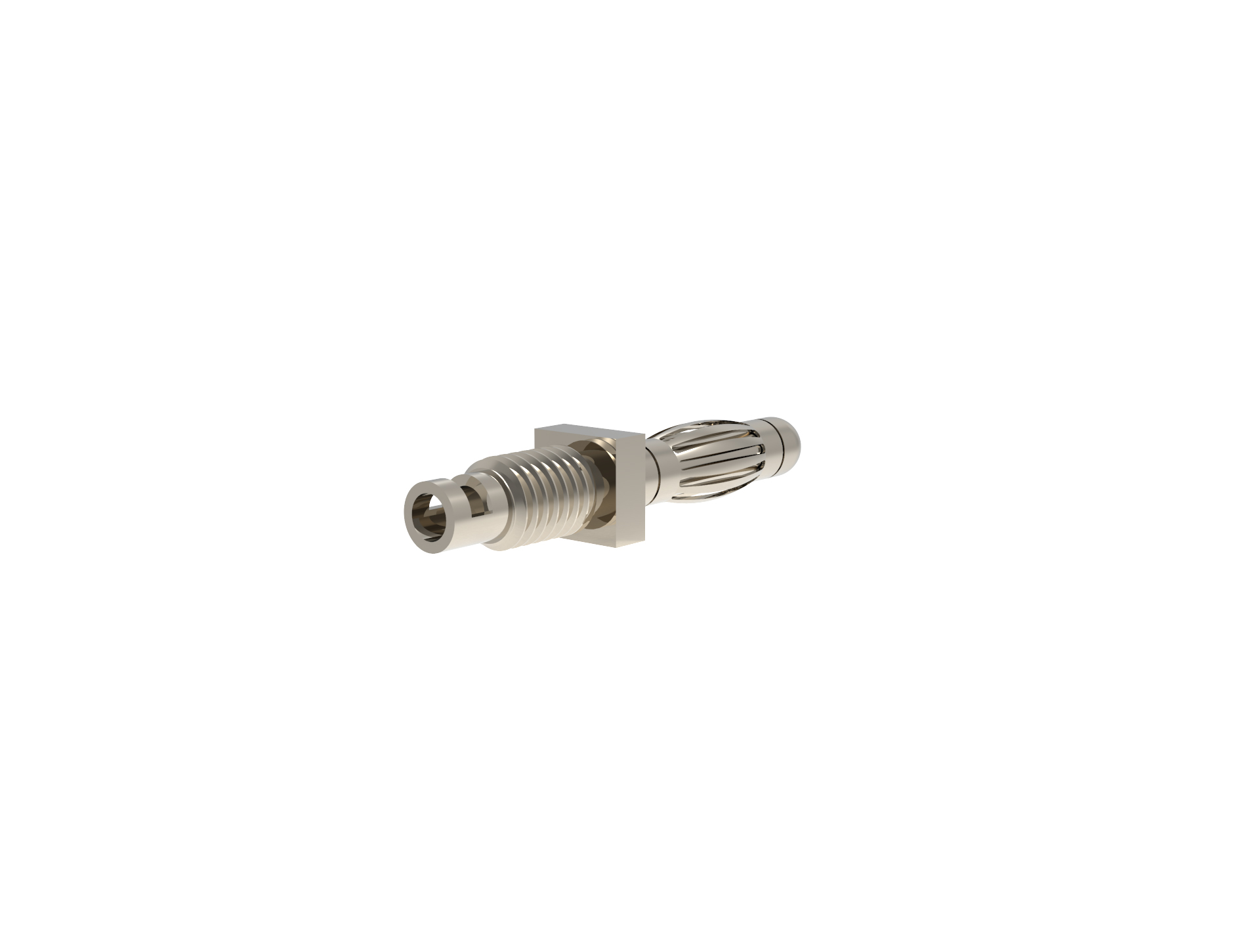

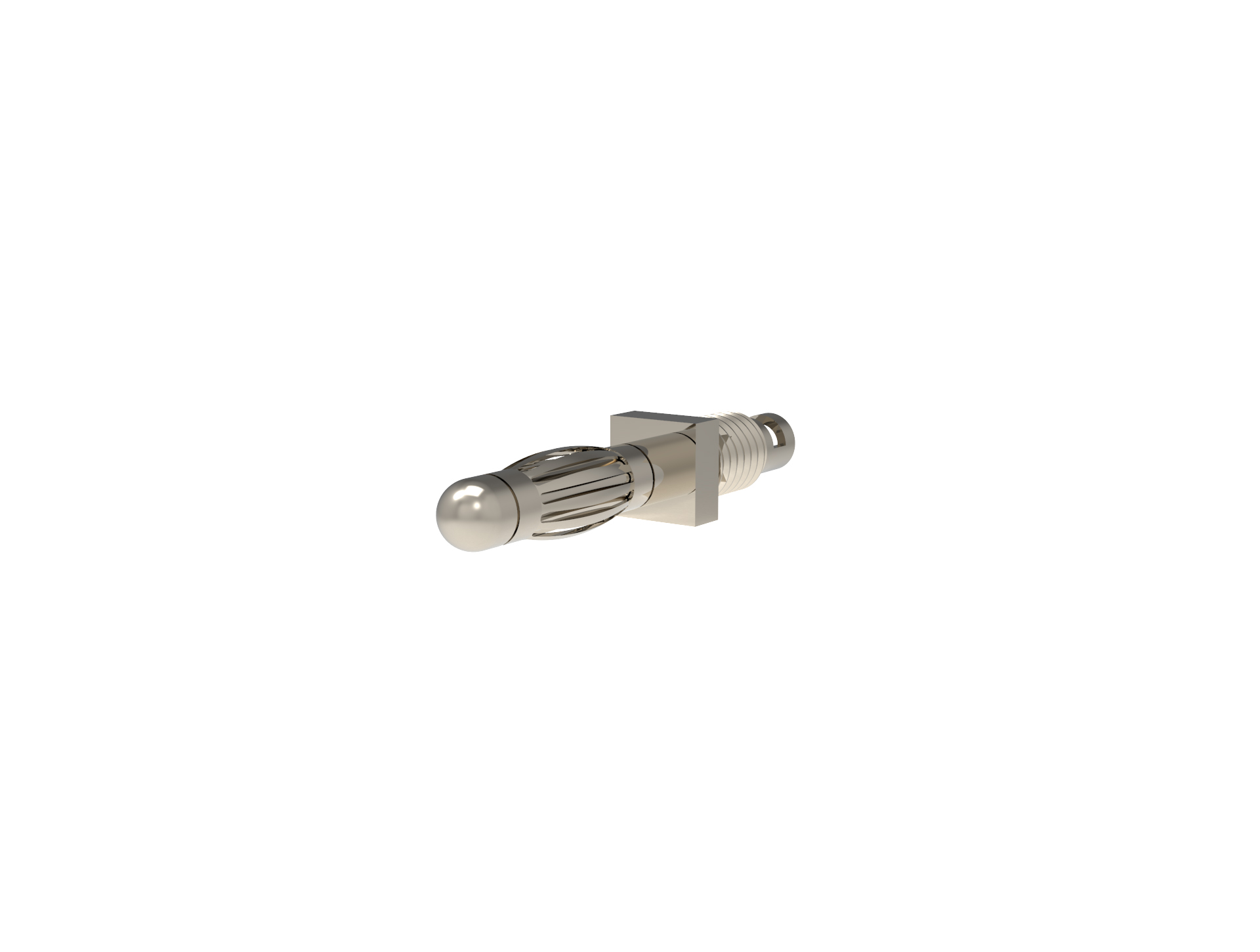

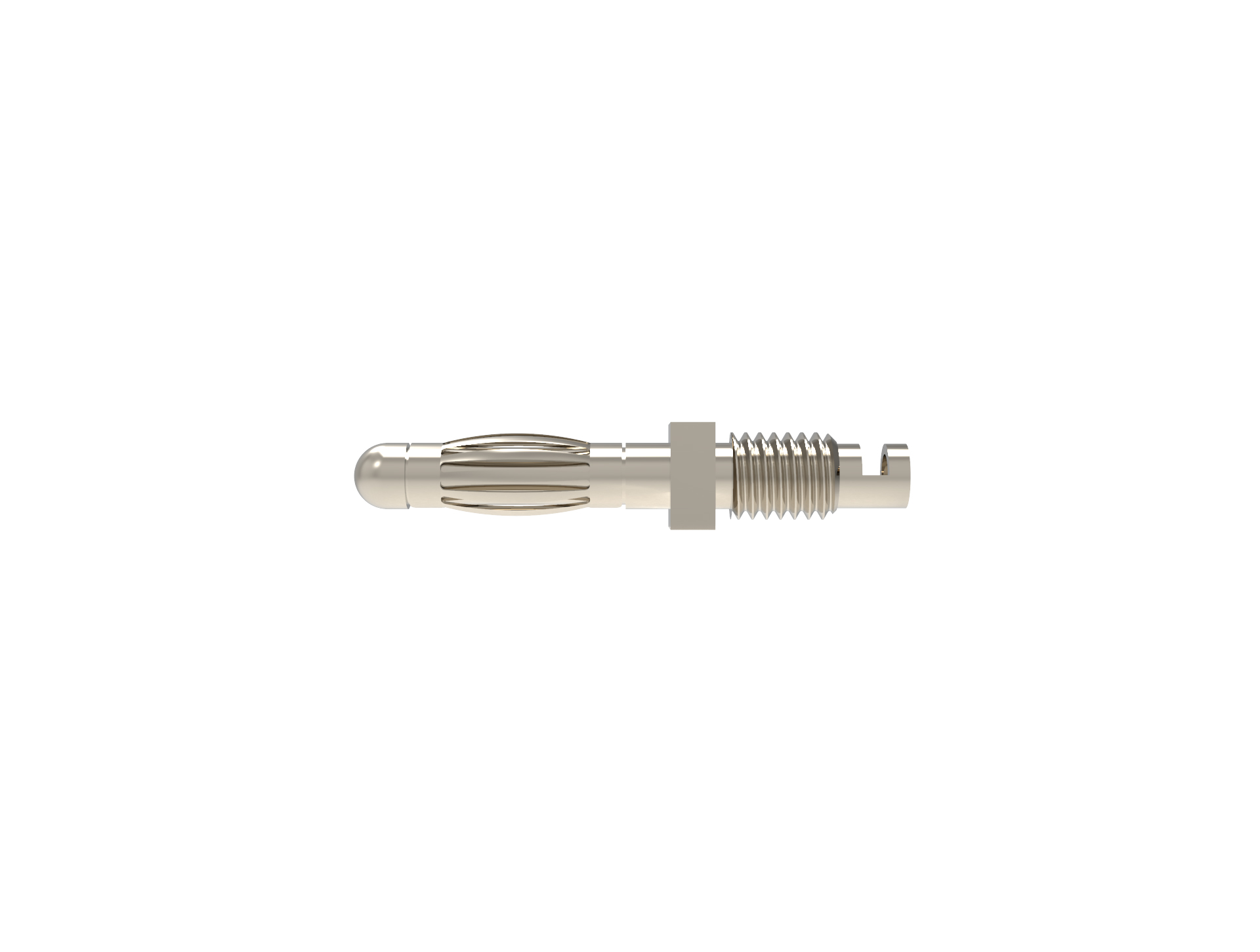

Lamella-basket plug
FK 1215
Ø
4 mm
No items found.
Compile order information
Your match code
FK 1215
…
Thank you! Your submission has been received!
Oops! Something went wrong while submitting the form.
Product Description
- 4-sided fastener, width across flats SW 6
- thread M5 x 7
- with solder terminal for cables up to 2.5 mm²
General information
Colour
No items found.
Längen
Contact parts
Ni
(
nickel-plated
)
/
Au
(
gold-plated
)
/
Sleeves
Isolierteile
Inhalt
Lagerung
Steckabstand
Technical Data
Terminal
solder up to 2.5 mm²
Leitung
Mounting hole
Handle sleeve for cable
For cable cross-section
For cable diameter
Transition resistance
3 mΩ (Ni) / 2 mΩ (Au)
Rated voltage
30 VAC / 60 VDC
,
Rated current
32 A
Thread
M5 x 7
Operating temperature
-40 °C to +110 °C
Max. torque
fastening nut
fastening nut
Tightening torque
of the nut M4
of the nut M4
Flachsteckzunge
Einsteckfenster
Druckfederkraft
RG-Typ nach MIL-C-17
Wellenwiderstand
Seiten
Further information
Matchcode: Other contact platings and designs on request.
Rated voltage & rated current: At normal ambient temperatures.
