Kelvin measuring lead
KML 7852
Kelvin
No items found.
Compile order information
Your match code
KML 7852
…
Thank you! Your submission has been received!
Oops! Something went wrong while submitting the form.
Product Description

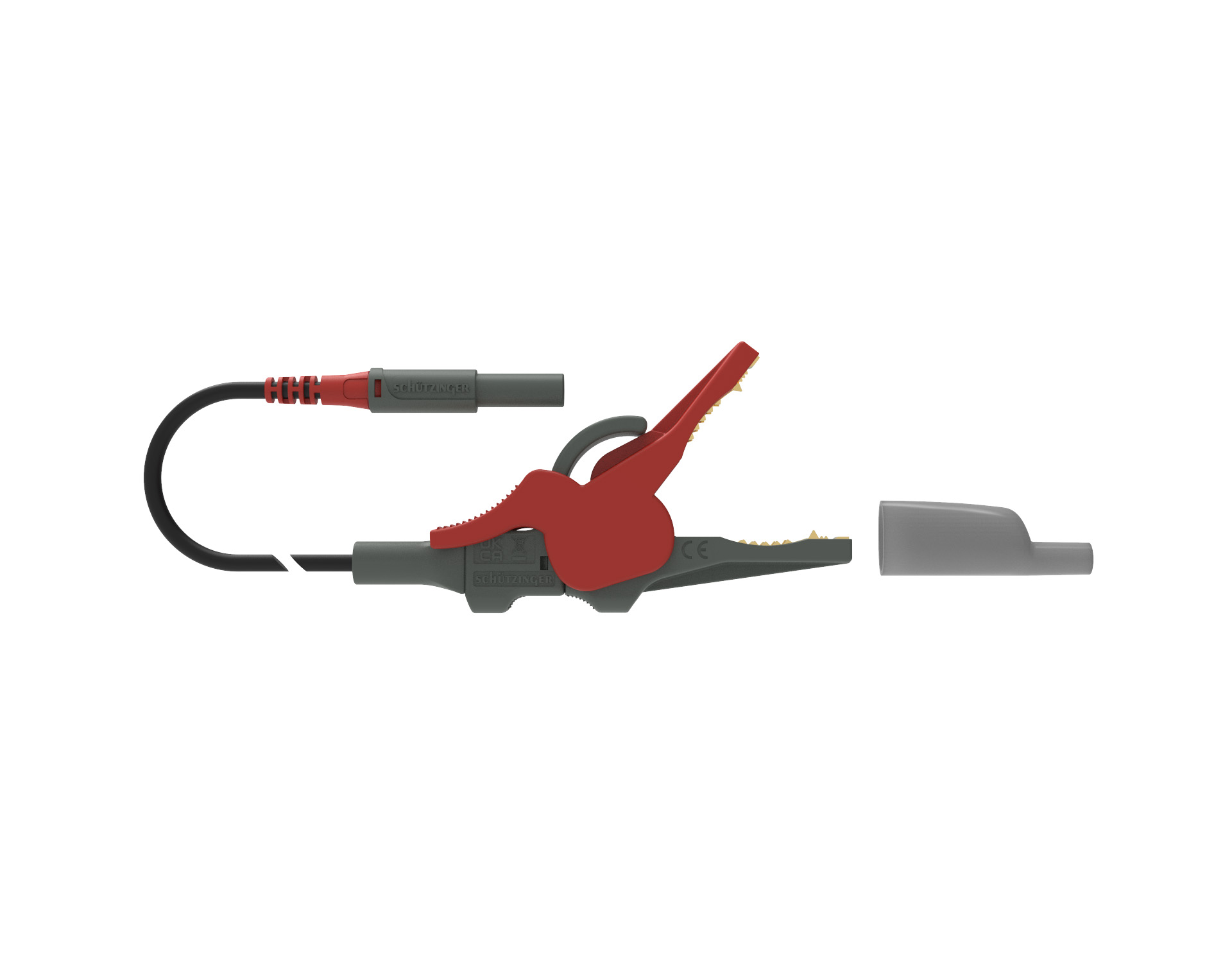

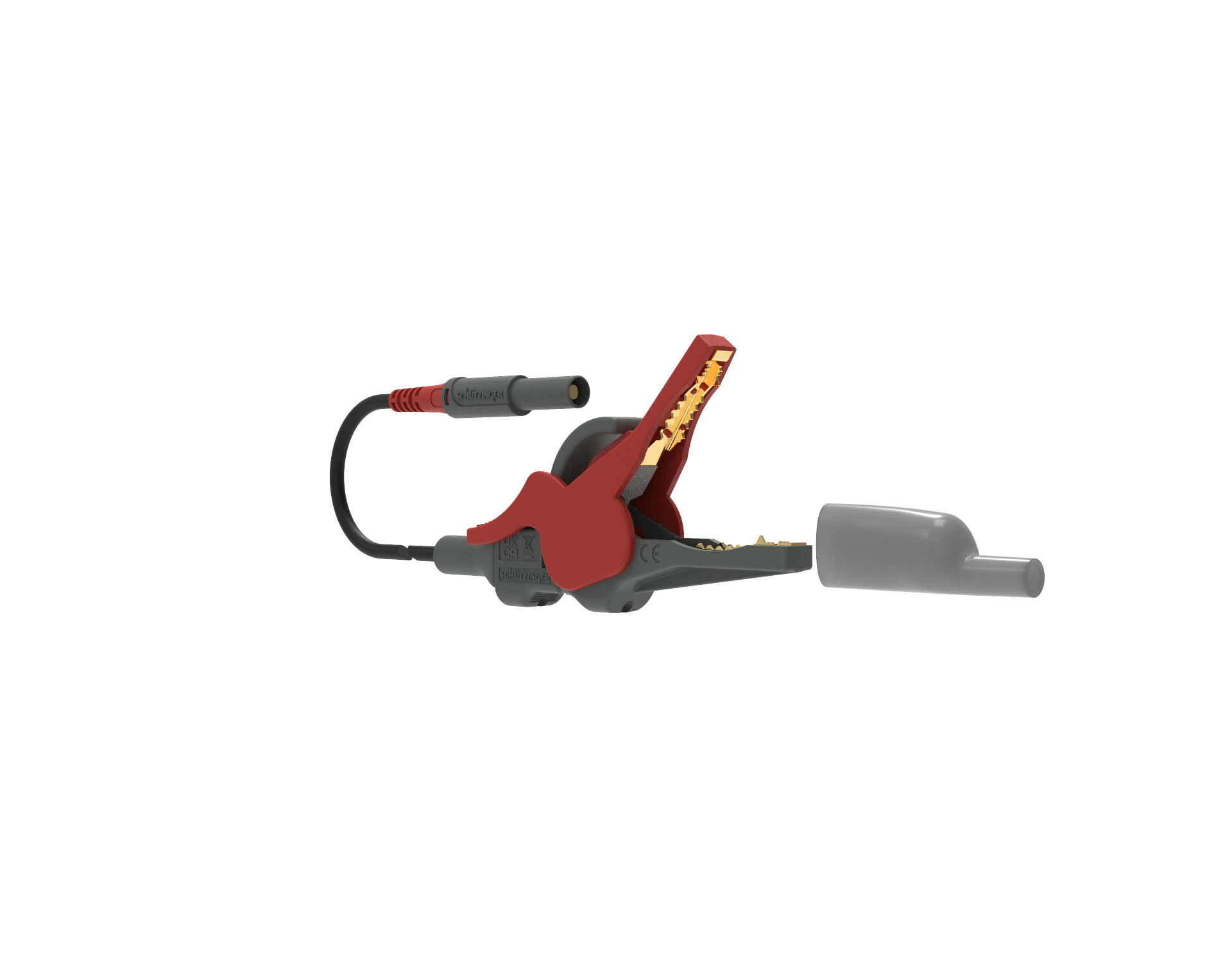

- 1 coaxial safety lamella-basket plug, assembled on coaxial cable and safety kelvin clip
- this kelvin measuring lead has been especially developed for four-wire measurement
- safety kelvin clip with grips up to Ø 30 mm
- for our kelvin threaded socket KBU 7992 L Au /..(colour)
- cable coaxial cable 2 x 0.75 mm²
- colours, black, red
General information
Colour
No items found.
Längen
150 cm
Contact parts
Au
(
gold-plated
)
/
Sleeves
Isolierteile
PA 6.6 (Polyamid)
Inhalt
Lagerung
Steckabstand
Technical Data
Terminal
Leitung
coaxial cable 2 x 0.75 mm²
Mounting hole
Handle sleeve for cable
For cable cross-section
For cable diameter
Transition resistance
Rated voltage
30 VAC / 60 VDC
,
Rated current
10 A
Thread
Operating temperature
-10 °C to +80 °C
Max. torque
fastening nut
fastening nut
Tightening torque
of the nut M4
of the nut M4
Flachsteckzunge
Einsteckfenster
Druckfederkraft
RG-Typ nach MIL-C-17
Wellenwiderstand
Seiten
Further information
Matchcode: Other contact platings, colours and lengths on request.
Rated voltage & rated current: At normal ambient temperatures.
