Messleitung
MFK 15-2,5
Ø
4 mm
No items found.
Compile order information
Your match code
MFK 15-2,5
…
/
…
Thank you! Your submission has been received!
Oops! Something went wrong while submitting the form.
Product Description

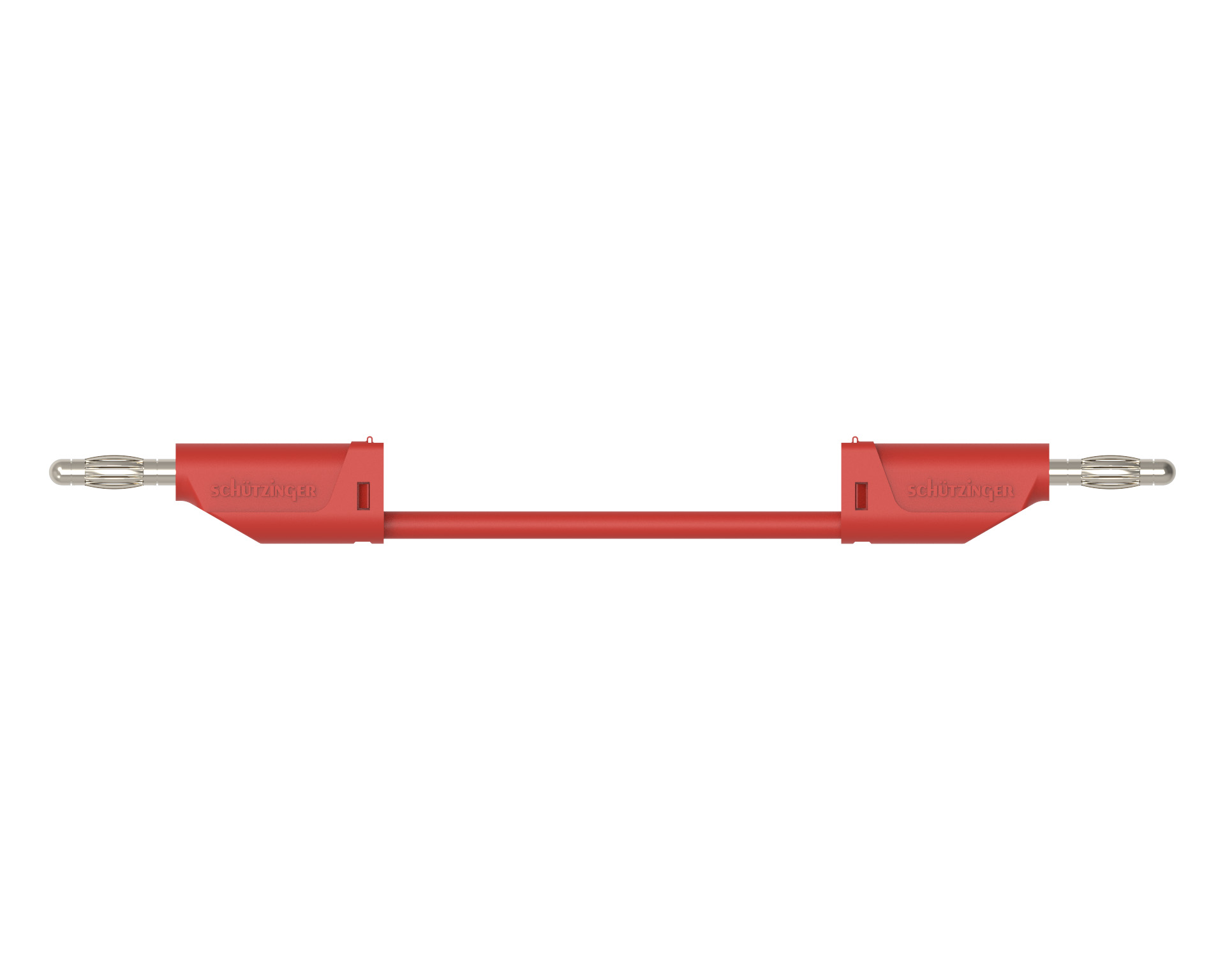

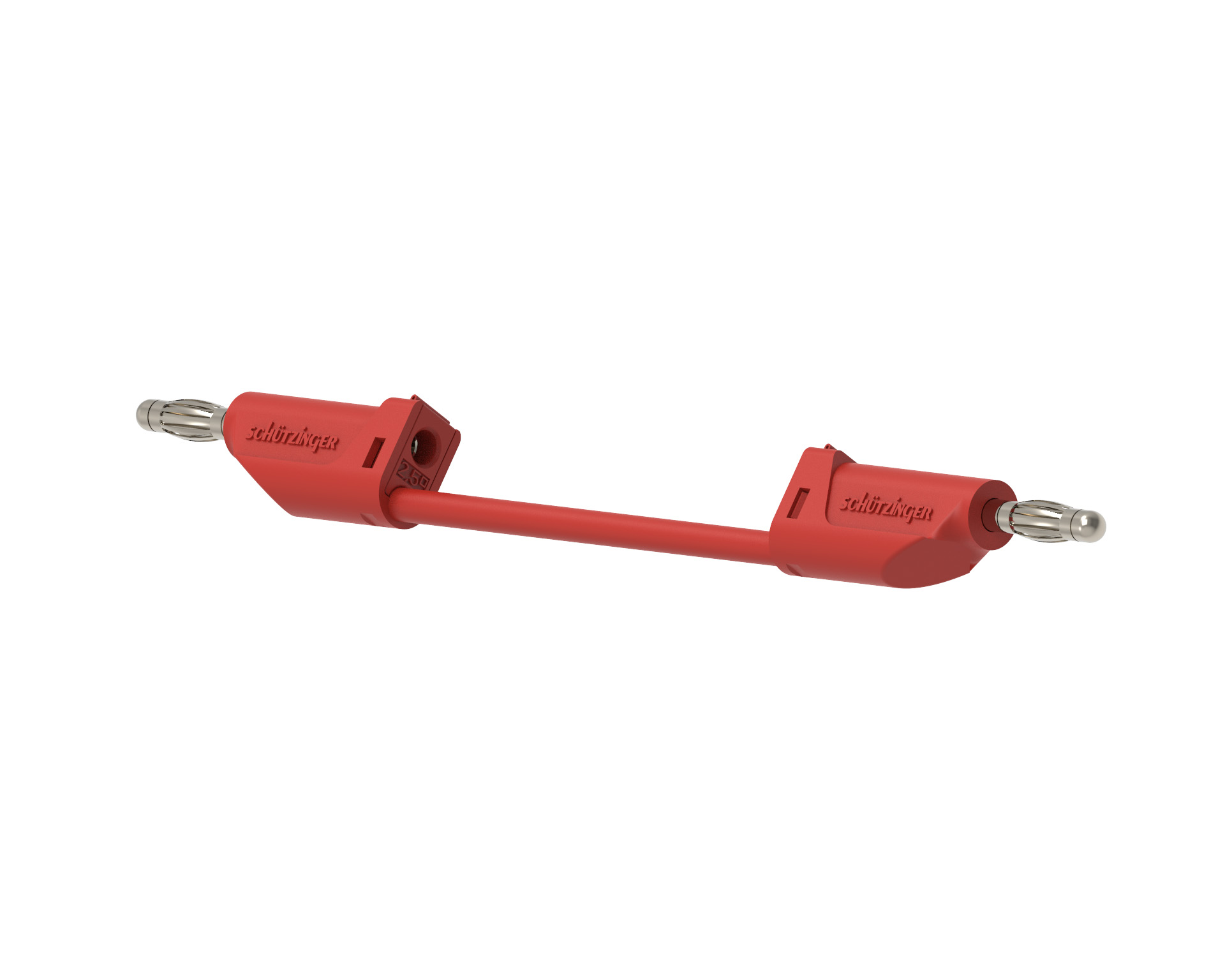

- 2 lamella-basket plugs with inline socket, assembled on highly flexible double-insulated PVC cable 2.5 mm²
- cable 2.5 mm² PVC double-insulated
General information
Colour
black
,
red
,
blue
,
yellow
,
green
,
grey
,
brown
,
white
,
violet
,
green-yellow
,
Längen
25 cm, 50 cm, 100 cm, 150 cm, 200 cm
Contact parts
Ni
(
nickel-plated
)
/
Sleeves
PA 6.6 (UL94-V2)
Isolierteile
Inhalt
Lagerung
Steckabstand
Technical Data
Terminal
Leitung
2.5 mm² PVC double-insulated
Mounting hole
Handle sleeve for cable
For cable cross-section
For cable diameter
Transition resistance
5 mΩ (Ni) / 9 mΩ (Ni) / 18 mΩ (Ni) / 27 mΩ (Ni) / 35 mΩ (Ni)
Rated voltage
30 VAC / 60 VDC
,
Rated current
32 A
Thread
Operating temperature
-10 °C to +70 °C
Max. torque
fastening nut
fastening nut
Tightening torque
of the nut M4
of the nut M4
Flachsteckzunge
Einsteckfenster
Druckfederkraft
RG-Typ nach MIL-C-17
Wellenwiderstand
Seiten
Further information
Matchcode: Other contact platings, colours, lengths, wire cross-sections and alternatives in silicone on request.
Rated voltage & rated current: At normal ambient temperatures.
