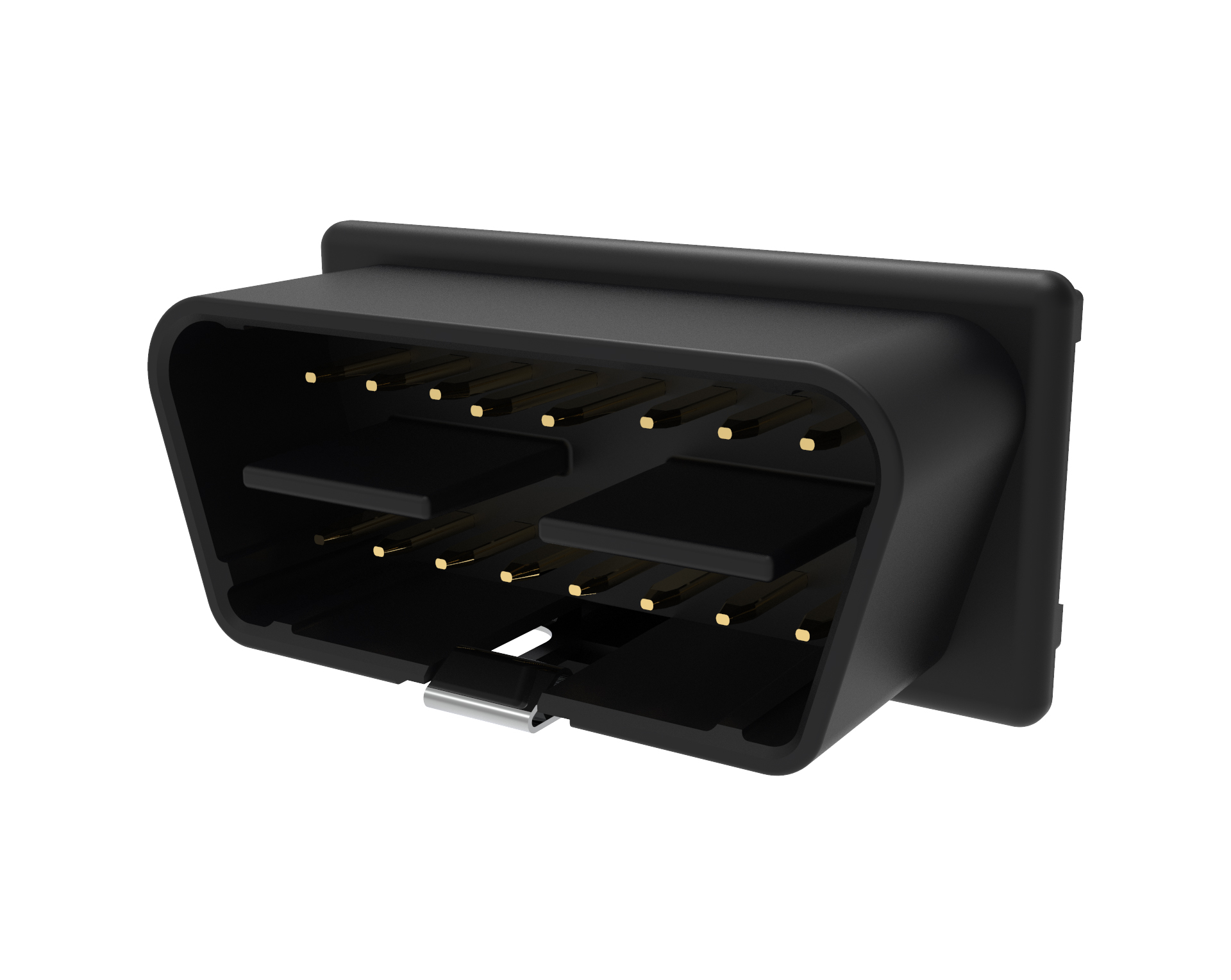

OBD connector
OBDST 7388 AURO
No items found.
No items found.
Compile order information
Your match code
OBDST 7388 AURO
…
/
…
Thank you! Your submission has been received!
Oops! Something went wrong while submitting the form.
Product Description

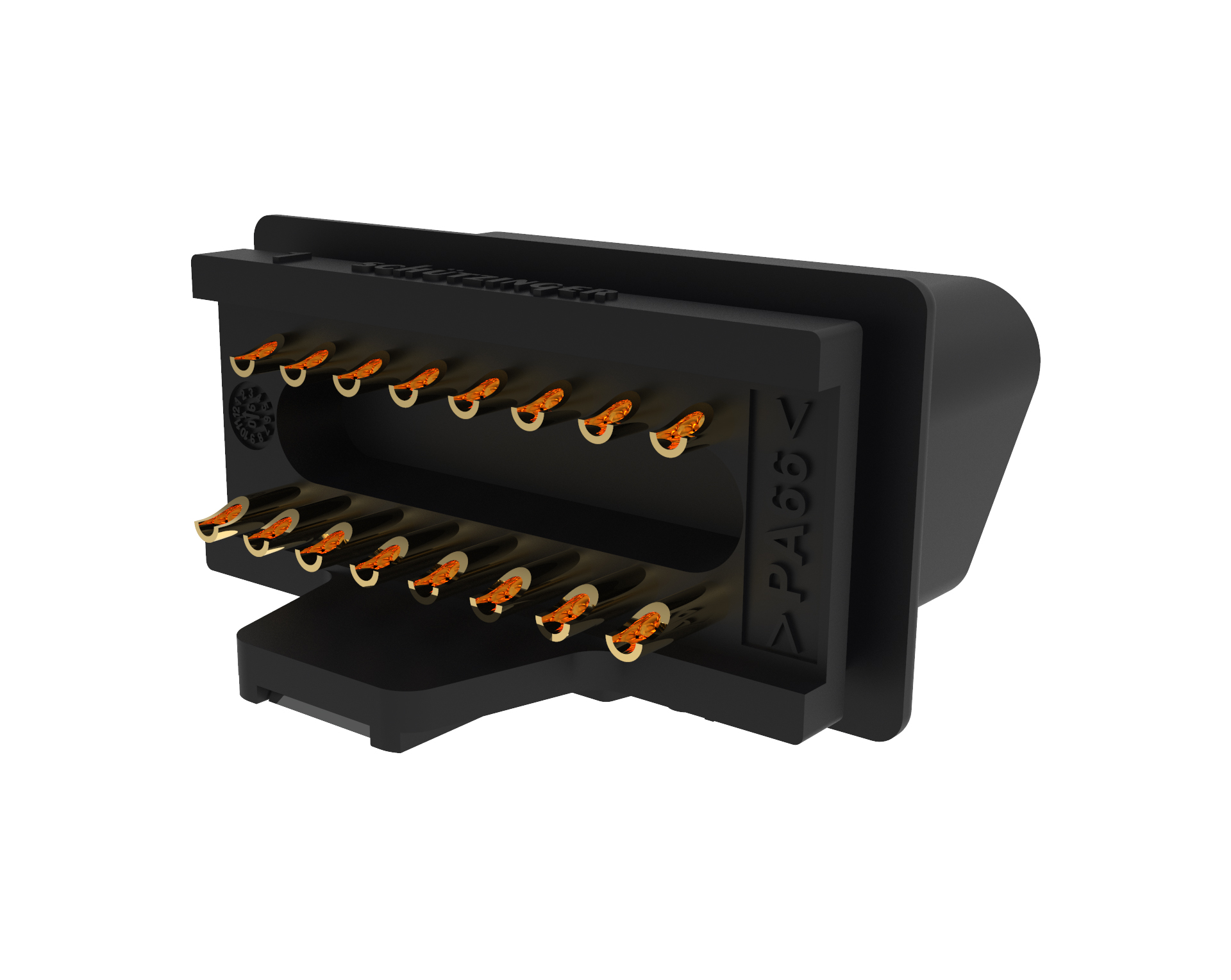

- OBD connector 24V with soldering pin and solder terminal for wire strand up to Ø 1.3 mm
- with rectangle pins 1.6x0.82
- for soldering up to PCB
- mating cycles 5000
General information
Colour
black
,
Längen
Contact parts
Au
(
gold-plated
)
/
Sleeves
Isolierteile
PA 6.6 (Polyamid) UL94 – V2
Inhalt
Lagerung
Steckabstand
Technical Data
Terminal
solder pin Ø 1.3 mm
Leitung
Mounting hole
Handle sleeve for cable
For cable cross-section
For cable diameter
Transition resistance
0 mΩ (Au)
Rated voltage
24 V
,
Rated current
10 A
Thread
Operating temperature
-25 °C to +85 °C
Max. torque
fastening nut
fastening nut
Tightening torque
of the nut M4
of the nut M4
Flachsteckzunge
Einsteckfenster
Druckfederkraft
RG-Typ nach MIL-C-17
Wellenwiderstand
Seiten
Further information
Rated voltage & rated current: At normal ambient temperatures.
