Set mit OBD-Stecker
SET 9154 OBD II
No items found.
No items found.
Compile order information
Your match code
SET 9154 OBD II
…
/
…
Thank you! Your submission has been received!
Oops! Something went wrong while submitting the form.
Product Description

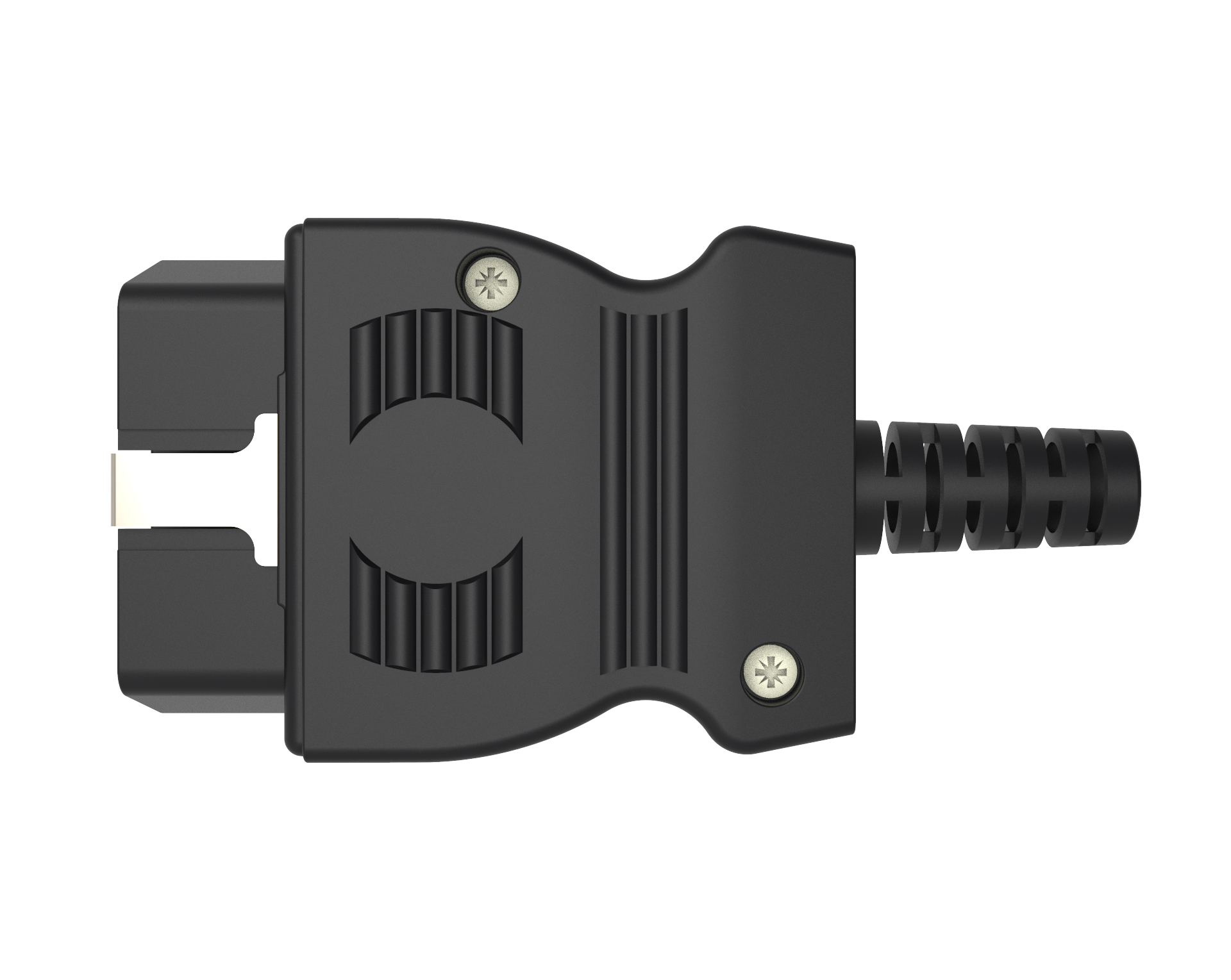

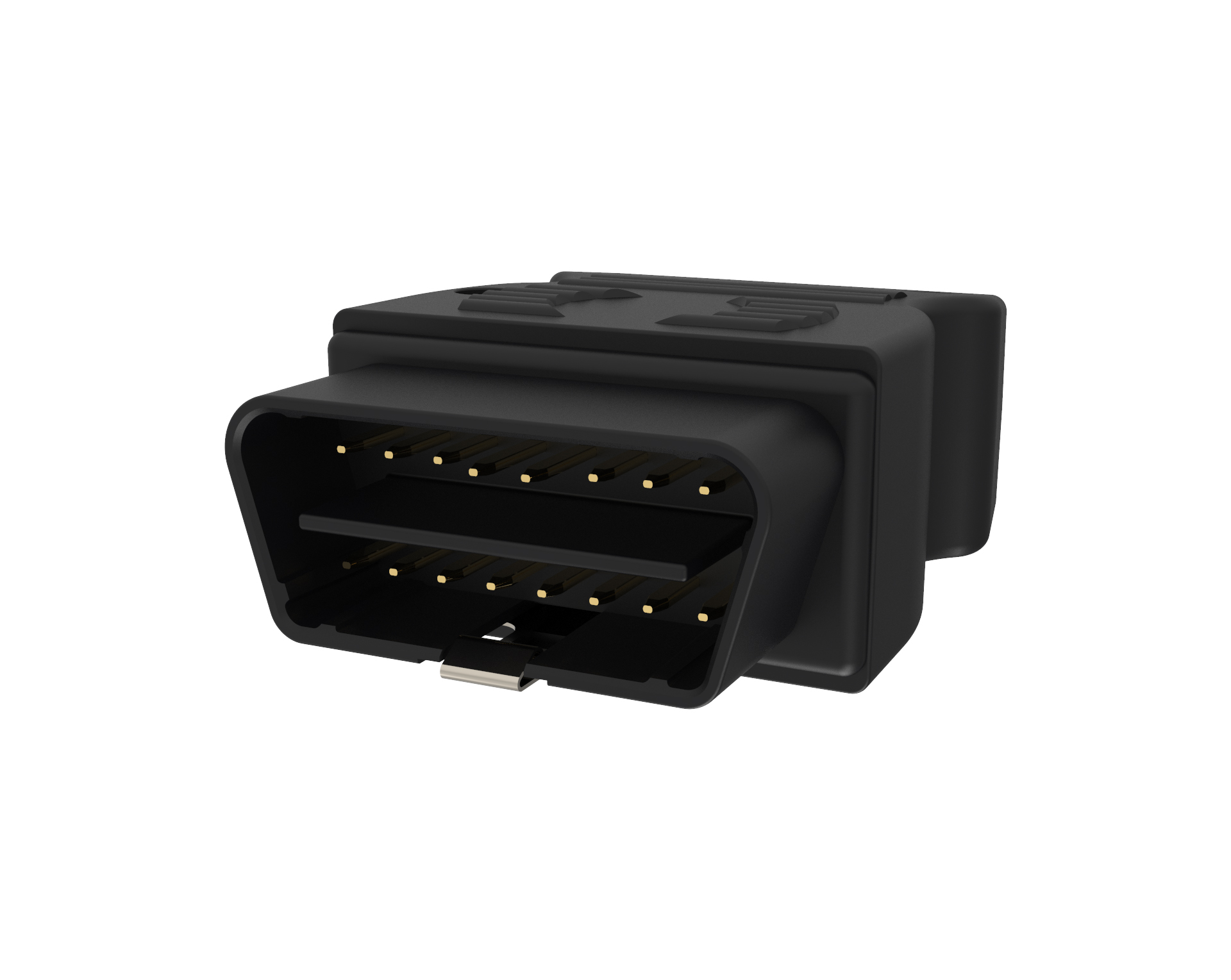

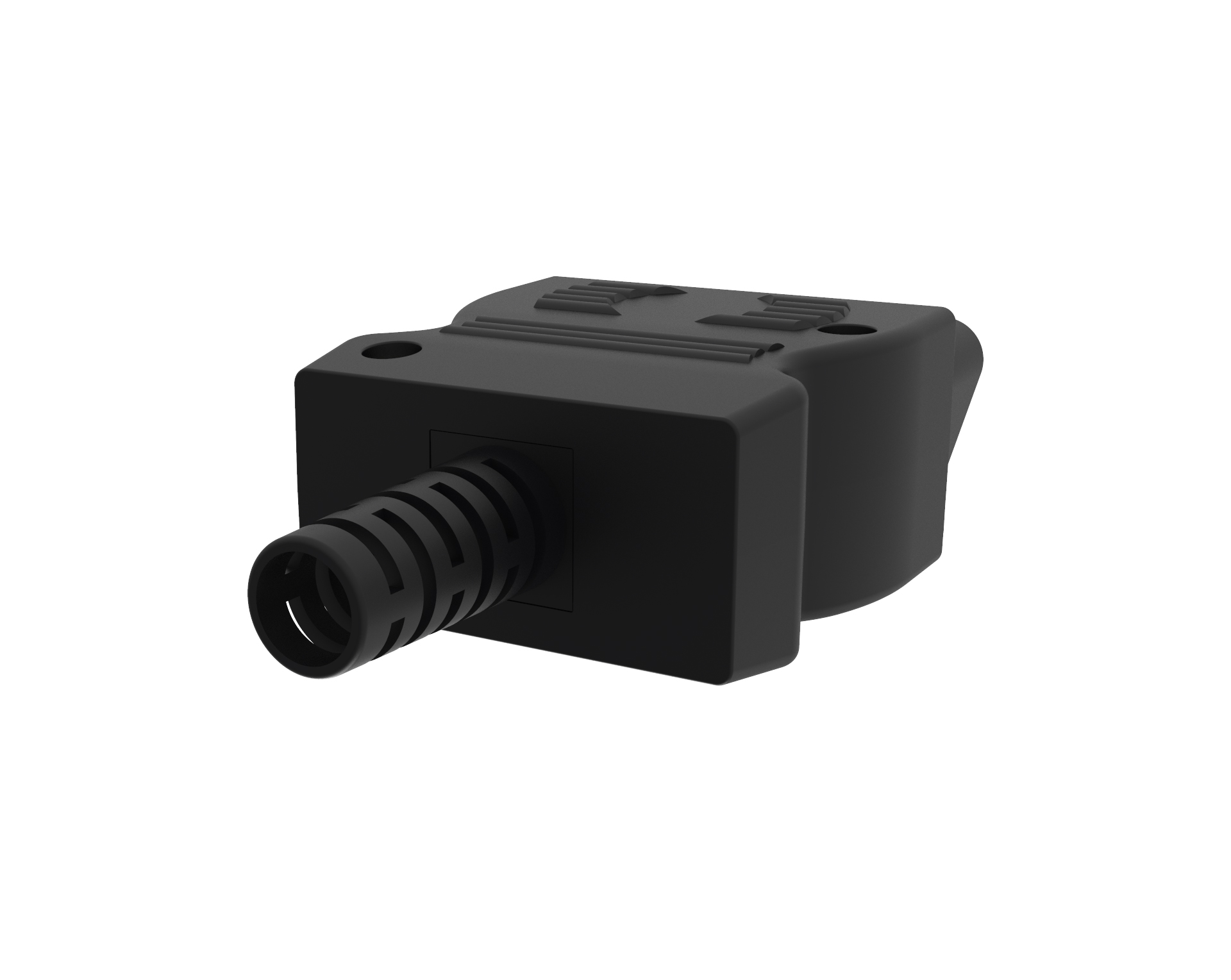

- The components are used for the manufacture of a lead for connecting to the OBD II socket in the vehicle interior
- set with housing made of PA6.6, OBD II connector and bend relief for cables up to Ø 11 mm
- OBD connector 24 V with solder pins
- with rectangle pins 1.6 x 0.82
- ext. dimensions length x width x height 61 mm x 44.5 mm x 26 mm
- with solder terminal for wire strand up to Ø 1.3 mm
- mating cycles 5000
- or a professional application of our products, the safety instructions must be observed
General information
Colour
black
,
Längen
Contact parts
Au
(
gold-plated
)
/
Sleeves
Isolierteile
PA 6.6 (UL94 – V2)
Inhalt
Lagerung
Steckabstand
Technical Data
Terminal
Leitung
Ø 11 mm
Mounting hole
Handle sleeve for cable
For cable cross-section
For cable diameter
Transition resistance
Rated voltage
24 V
,
Rated current
10 A
Thread
Operating temperature
-25 °C to +80 °C
Max. torque
fastening nut
fastening nut
Tightening torque
of the nut M4
of the nut M4
Flachsteckzunge
Einsteckfenster
Druckfederkraft
RG-Typ nach MIL-C-17
Wellenwiderstand
Seiten
Further information
Matchcode: Other contact platings and colours on request
Rated voltage & rated current: At normal ambienttemperatures.
Rated voltage: For a professional application of our products, the safety instructions must be observed and followed
