Product Description

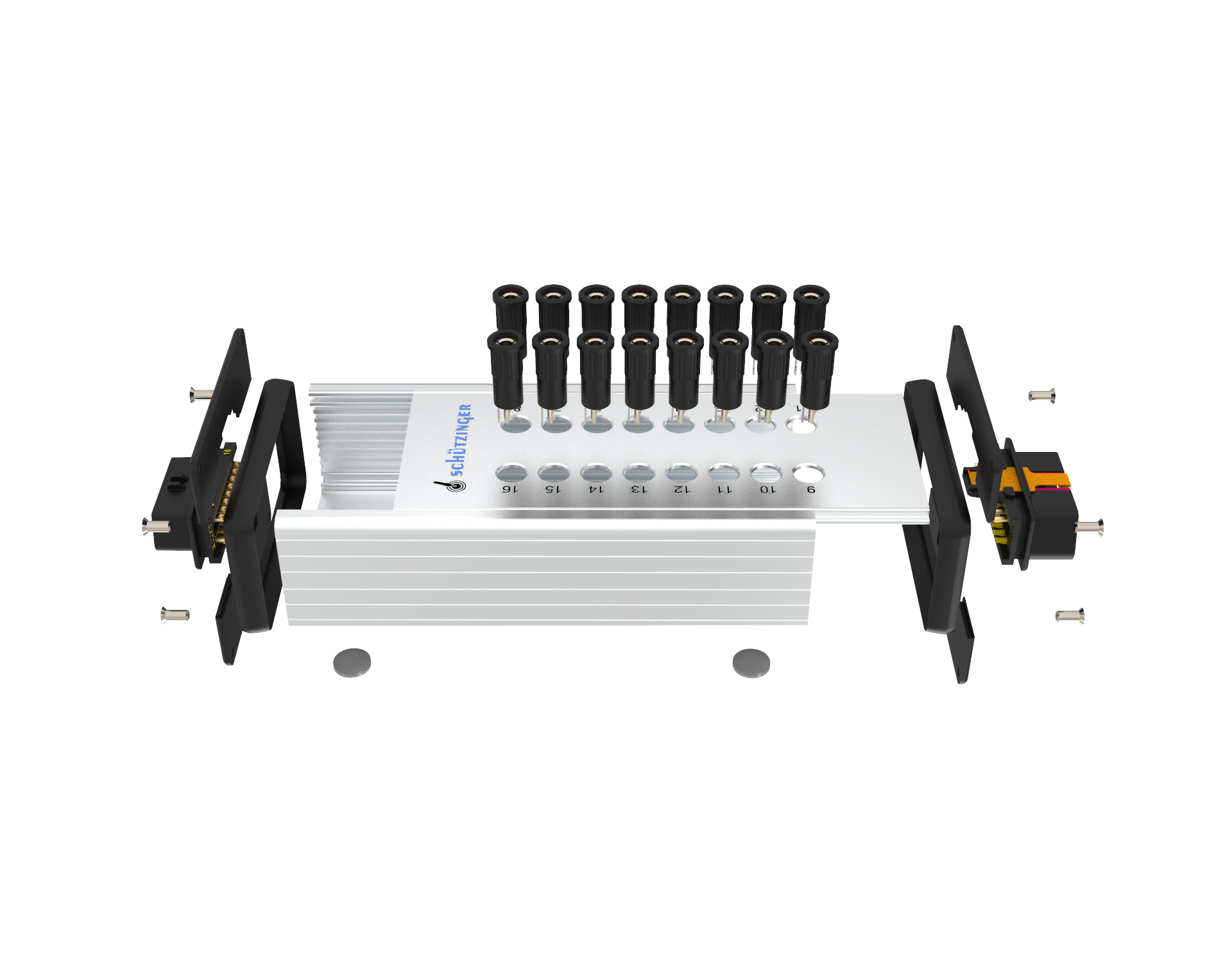

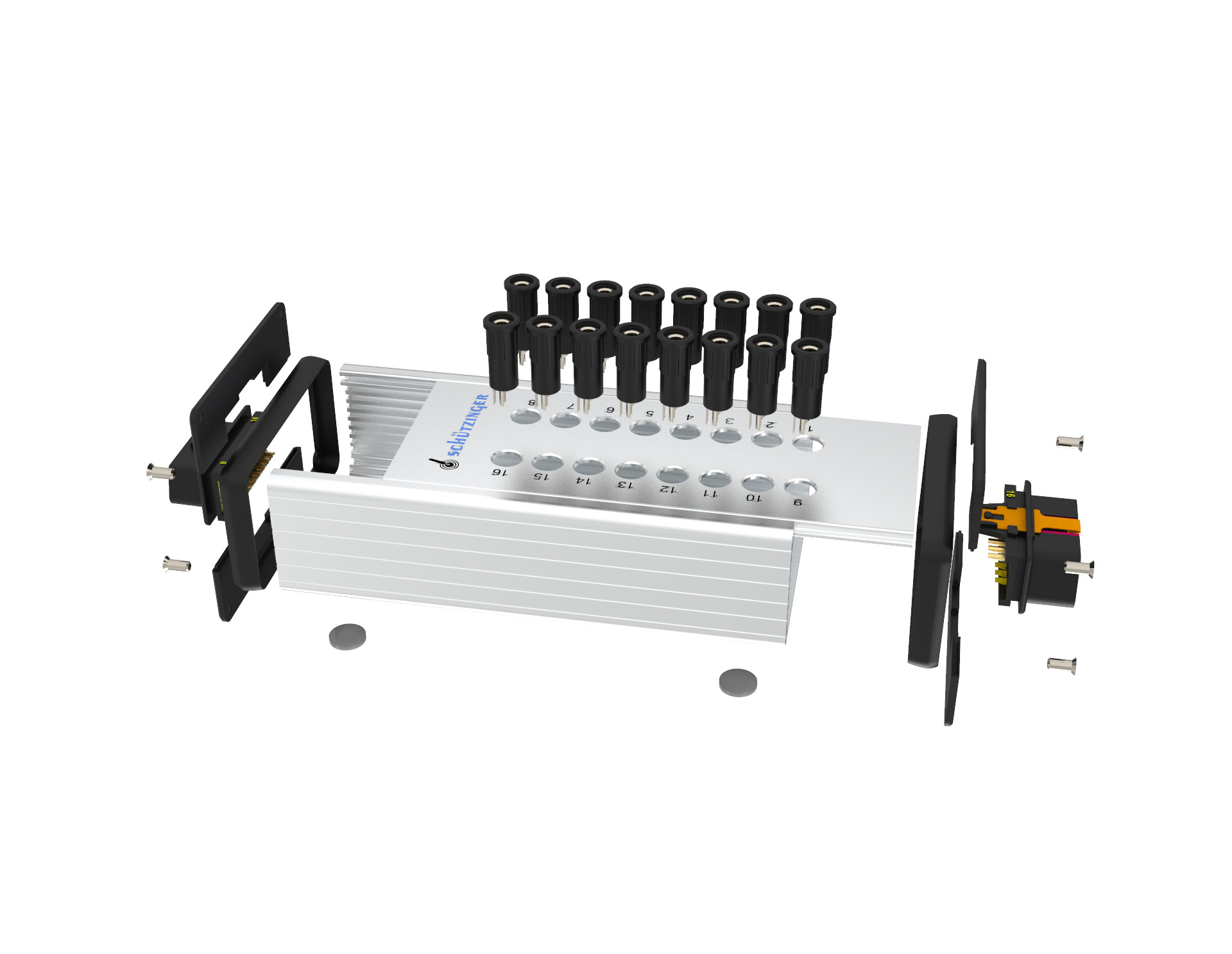

- diagnostic box for the OBD II interface of the vehicle
- 1 x OBD II socket OBDBU 7640 Au / 24V / SW and 1 x OBD II connector OBDST 7388 AURO / 24V / SW on the face
- 16 x connecting sockets BRBU 7924 L Ni / SW, marked with the OBD pin number in the grid dimension of 13 cm / 21 mm
- marking with the pin number of the OBD socket or OBD connector
- pin-wise contact of the OBD socket with the connecting socket and pin-wise contact of the connecting socket with the OBD connector
- Available option: We recommend you 16 connecting plugs BRST 7922 Ni /..(colour) to bridge the contacts in the connecting socket (see circuit diagramm)
- housing Aluminium
General information
Colour
black
,
Längen
Contact parts
Ni & Au
(
nickel-plated & gold-plated
)
/
Sleeves
Isolierteile
PA 6.6 (Polyamid)
Inhalt
Lagerung
Steckabstand
Technical Data
Terminal
stecken
Leitung
Mounting hole
Handle sleeve for cable
For cable cross-section
For cable diameter
Transition resistance
Rated voltage
30 VAC / 60 VDC
,
Rated current
10 A
Thread
Operating temperature
-25 °C to +80 °C
Max. torque
fastening nut
fastening nut
Tightening torque
of the nut M4
of the nut M4
Flachsteckzunge
Einsteckfenster
Druckfederkraft
RG-Typ nach MIL-C-17
Wellenwiderstand
Seiten
Further information
Matchcode: Other contact platings and colours on request.
Rated voltage & rated current: At normal ambient temperatures.
